Model Number : MR-LS-KR005
Megan Racing Performance Lowering Springs are constructed of SAE 9254 Cold Wounded Steel, one of the strongest materials available. The high tensile strength and phosphate powder coating delivers outstanding spring rates that are extremely durable and resist premature “sagging?
The result is a spring that specifically offers race car handling, yet maintains smooth and comfortable ride characteristics. Carefully matched springs rates provide exceptional handling, response, control and balance. These springs offer a generous drop to your car while remaining very “street-able?by having enough clearance to avoid bottoming-out; and the lowered center of gravity improves performance and increases stability, as well as enhancing the appearance of the vehicle. (Note: Spring rates and drop amount vary by different vehicle application and chassis load.)
SPECIFICATIONS & FEATURES:
Application: Kia Rio 2000-2005

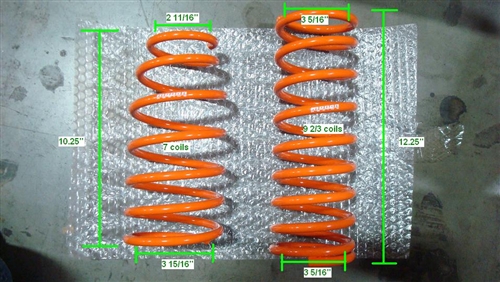

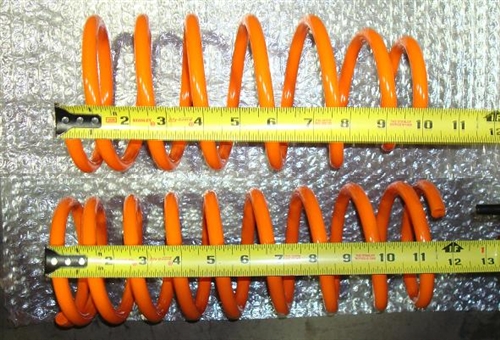

MEASUREMENTS:
Spring #1 / Tapered Spring:
- Length: 10.25"
- ID #1: 2 11/16"
- ID #2: 3 15/16"
- 7 coils
Spring #2 / Non-Tapered Spring:
- Length: 12.25"
- ID #1: 3 5/16"
- ID #2: 3 5/16"
- 9 2/3 coils
- Color: Orange
- Lower rate: 1.5" Front/ 1.5" Rear
*pending revision* 2/28/11
*does not fit Hyundai Accent revised* 5/23/11
* Most of the images provided are for illustration purposes only and may not be the actual products.
* All Megan Racing Exhaust and Suspension products are deemed for "off-road use only"
(
