Model Number : MRS-SC-0693

Megan Racing extended wheel studs are made with heat treated high strength chromoly steel. Lost of threading on stock studs can be a major safety issue, these extended studs are essential upgrade for added spacers or aftermarket thick-center wheels. These studs are intended to be used with open-ended lug nuts.

Applications:

- Scion FRS / Subaru BRZ 2013+

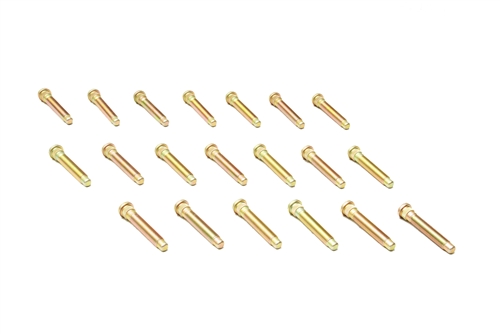

- Package of 20 Extended Wheel Studs

Thread Size: 12mm x 1.25RH

Knurl Size: 14.50mm

Thread Length: 52mm

Overall dimension of stud (see diagram)

D1: 18.75mm

D2: 12.10mm

D3: 12mm

L1: 5.50mm

L2: 8.50mm

L3: 5.50mm

L4: 62mm

*Note: Recommended to be used with wheel spacers up to 20mm, 5-6 full turns of lug nut to secure with use of torque wrench.

*Most of the images provided are for illustration purposes only and may not be the actual products.

**All Megan Racing Exhaust and Suspension products are deemed for "off-road use only"
